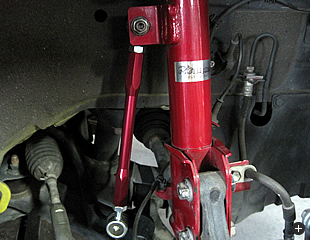

Stabilizer rod that can be adjusted A stabilizer rod adjustment function is provided so that the performance of the stabilizer can be brought out normally. There are cases where various suspension kits such as car harmonics and down springs are installed, but at that time the stabilizer cannot be kept in the normal position, and interference and significant tension are applied, and ride comfort is impaired There are cases where the stabilizer does not work well. Therefore, we developed a stabilizer rod that can be adjusted! By adjusting to the normal length, the suspension can move flexibly or have a smooth cornering.

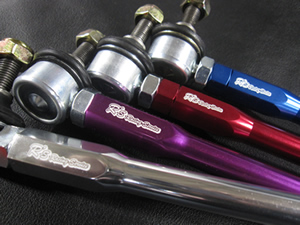

Four types with different lengths are available, so please select according to the vehicle specifications.

Swift Sport has a structure in which the stabilizer rod is pulled upwards by lowdown, so adjust the stabilizer rod in the direction to extend and optimize the stabilizer angle.

Basically, adjust the length so that the stabilizer is level with respect to the ground in the 1G state, or the angle between the stabilizer and the stabilizer link rod is 90 degrees.

The appropriate length of the stabilizer rod varies depending on the installed harmonic drive, damper, and set vehicle height, so be sure to check the dimensions of the current vehicle.

Please measure the dimension from the center to the center of the ball joint bolt.

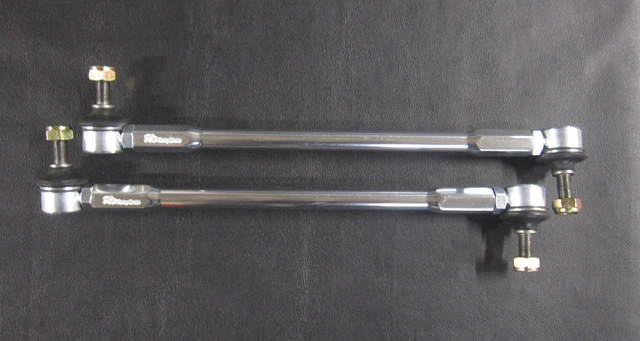

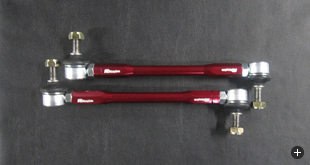

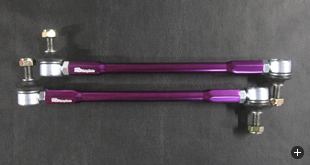

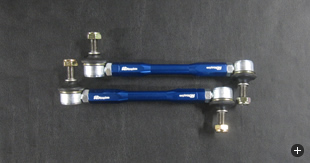

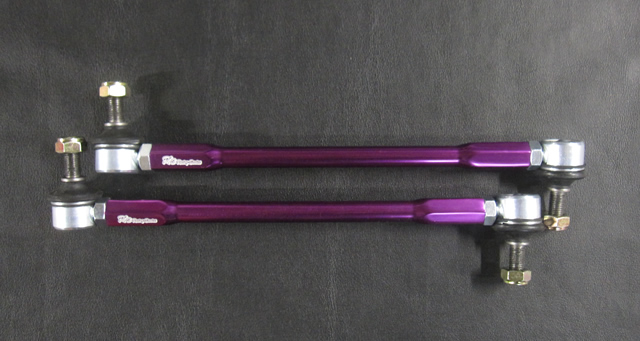

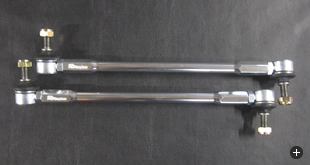

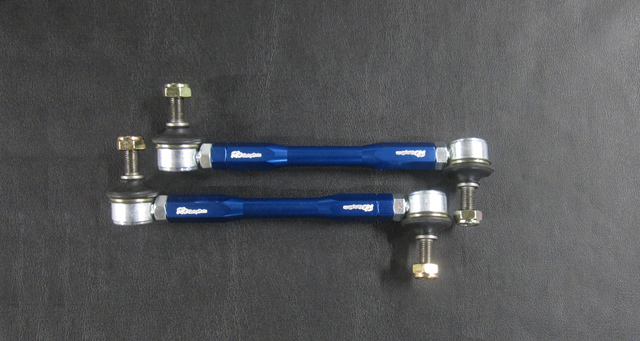

Silver 340mm-370mm Purple 300mm-330mm Red 260mm-290mm Blue 220mm-250mm

Stabilizer rod reference materials swift sport ZC31S normal 300mm ZC31S For RRP harmonic drive 300mm ZC32S normal 270mm ZC32S For RRP harmonic drive 215mm ZC33S normal 350mm ZC33S For RRP harmonic drive 300mm alto works HA36S normal 310mm HA36S For RRP harmonic drive 270mm Adjustable turnbuckle End bolt size M10 Anodized aluminum shaft Demonstrate the original performance of the stabilizer Front left and right two set
