We release our new damper kit of R's version for ZC32S and ZC72S.

R's version is designed with using high spring rate to drive your car sporty as same as RRP damper kit spec for ZC31S.

Even high spring rate, you can feel the riding comfort and flexible control.

The combination of spring rate front 8Kg and rear 10Kg can be pulled the best cornering speed and controllability of your car bringing out the tire performance. You can enjoy the riding of your Swift car with our R?s version damper kit.

RRP High Performance Damper Kit R's version for ZC32S and ZC72S

[Spec]

Front
  • Full Tap type (Coilover Suspension system)
  • Damping force 20 steps adjustable (Damper lower side adjuster)
  • Inverter type damper
  • Enable to change the camber angle with one-touch camber bolt
  • You can select -2 degrees or -3 degrees by setting position (+-0.3 degrees)
  • Spring rate : 8Kg
Rear
  • Full Tap Type (Coilover Suspension system)
  • Damping force 20 steps adjustable (Damper upper side adjuster)
  • Non-inverter type damper
  • M Machining from Aluminum
  • with Rear height adjuster
  • Spring rate : 10Kg

Option for Damper

  • Overhaul Damper fee
  •   Front
  •   Rear
  • Damper spec change fee
  • Front damper ASSY
  •
  • from 38,500 JPY (depends on consumption frequency)
  • from 33,000 JPY (depends on consumption frequency)
  • 5,500 JPY
  • 49,500 JPY
Price
S32-115FS RRP High Performance Damper kit R's version for ZC32S and ZC72S Full set
Fit : ZC32S and ZC72S

242,000 JPY

Out of stock, next delivery date being adjusted
S32-115 RRP High Performance Damper kit R's version for ZC32S and ZC72S
Fit : ZC32S and ZC72S

198,000 JPY End of Sale

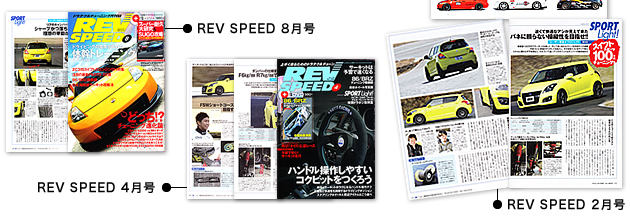

We release the special version damper cooperated with REV SPEED magazine.
We have developed the special damper for Suzuki Swift ZC32S and ZC72S featured article on REV SPEED magazine. Our target of this damper is FAST and comfort suspension system and have been testing and re-making the damper for this special project.


You can enjoy the driving for hill climbing and mini-circuit course even not so high spring rate. The test professional driver and REV SPEED editors could be satisfied with the final finish of this product. We are proud of announce this ride height adjusting suspension will be able to enjoy to every one of Swift users.


Specifications

Front
  • Full Tap system (Full-Length Ride Height Adjustment feature)
  • 20 level damping force adjustment with adjuster in damper blow
  • Regular Shell Case damper
  • Enable to adjust the camber with One touch camber bolt
    You can select -2 degree or -3 degree when fitting
    The angle depends on the car character so a tolerance will be +- 0.3 degree.
  • The basic spring rate : 6Kg
Rear
  • Full Tap system (Full-Length Ride Height Adjustment feature)
  • 20 level damping force adjustment with adjuster in damper upper
  • Regular Shell Case damper
  • Machining aluminum made with rear height adjuster
  • The basic spring rate : 7Kg


Product set

  • Front damper x 2pcs (with ASSY, Spring and Spring sheet)
  • Rear damper x 2pcs (ASSY)
  • Camber bolt x 2pcs
  • Rear Spring 7Kg x 2pcs
  • Rear Ride height adjuster x 2pcs (with spring sheet)
  • Stabilizer Rod x 2pcs
  • Wire knob for Damping adjuster x 1pc
  • Aluminum knob for Damping adjuster x 4pcs


RRP Racing Pillow Upper for ZC32S

Preventing sags of front damper upper rubber and with direct feeling by pillow ball, you can adjust the front camber as you like.

It allows the maximum - 2.5 to 3 degree adjusting and cornering speed will be increased.
This product can be fitted to not only RRP Damper but also the other manufacture's damper too.

[Note]
If you will fit RRP Racing Pillow Upper to other manufacture's damper, please check if the damper should be adjustable the body
height in 30mm lower. Because when fitting RRP Racing Pillow Upper to your car, the body height will be higher about 30mm.

Price
S32-110 RRP High Performance Damper REV SPEED version
Fit : ZC32S and ZC72S

End of Sale

[Note]
・for only Full-length ride height adjustment feature dumper
・correspond to a dumper low down about 30mm with present height
S32-111 RRP Racing Pillow Upper for ZC32S and ZC72S
Fit : ZC32S and ZC72S   (spec for damper center bolt is M12-P1.25)

36,300 JPYpurchase
