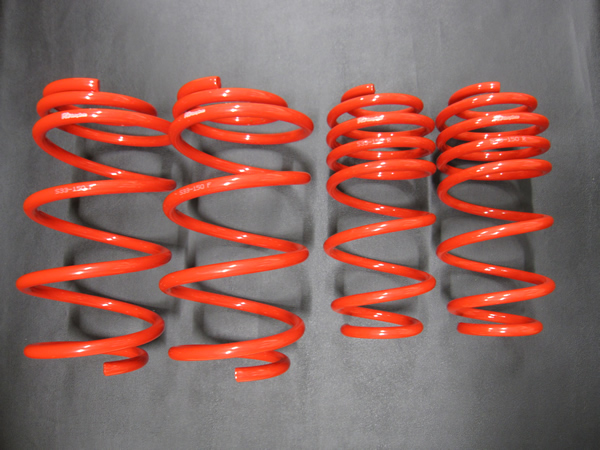

RRP Middle Down Suspension Spring for ZC33S

The car height setting which does not lower too much makes it compatible with styling and ride comfort

Ignoring the function of the genuine damper, the lowdown spring only aimed at simply dropping, matching with the damper is bad, causing deterioration of ride comfort.

In the RRP middle-down suspension spring, as a result of various tests, as the optimum value to make use of the genuine damper, the car height down amount is set to about 20 mm to 25 mm, at the same time, the spring rate setting that emphasizes matching with the genuine damper As we did, we realized both styling and comfortable running performance.

Down amount(mm)
Ft:-20mm~-25mm  Rr:-20mm~-25mm

Spring rate(Kgf/mm)
Ft:2.6   Rr:2.8

The vehicle height value is a numerical value on the design.
Because it varies according to the individual difference of the vehicle please think as a guide.

Development aiming for the best match with genuine shock absorber!

We conducted long-term tests in various situations and aimed at the best matching of the moderate car height down and the high quality characteristics of Monroe shock absorber which is adopted genuinely for ZC33S.

While balancing styling and riding comfort at a high level, you can also run sporty.

    • Adoption of special steel materials with less fixation
    • Brilliant Earles Red paint

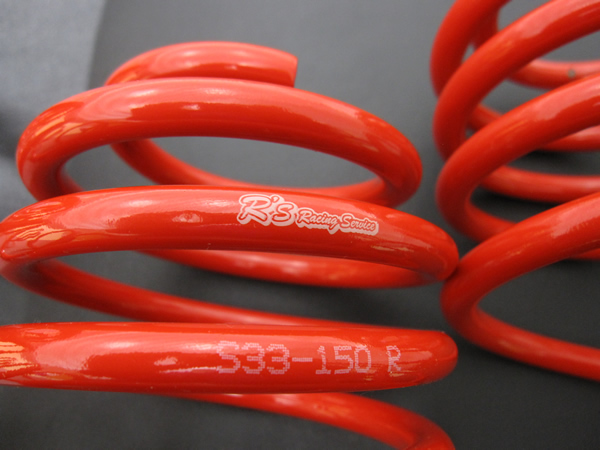

    • With R's Racing Service logo
    • Secure fog lamp height of 250 mm or more conforming to safety standards

normal

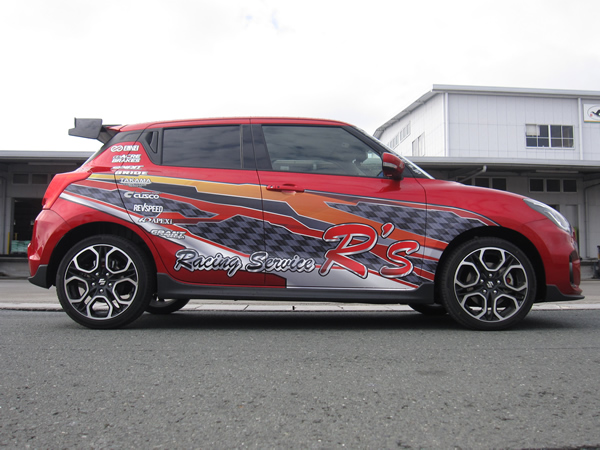

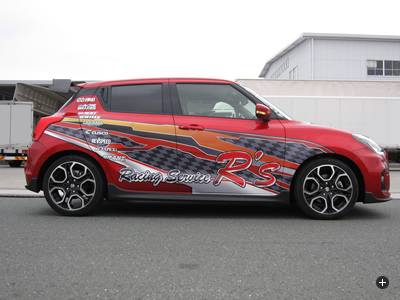

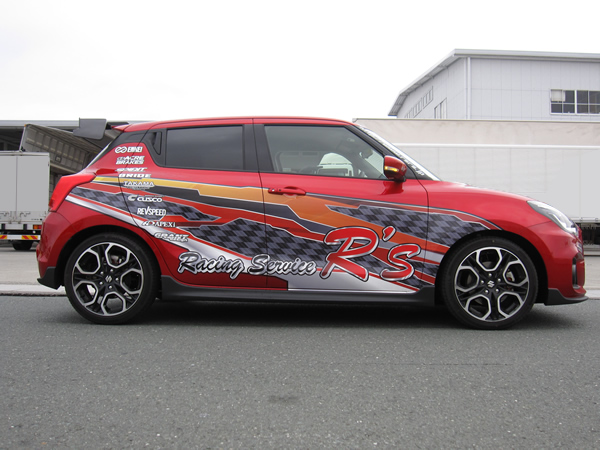

Middle-down suspension spring installed
price
S33-150:
RRPMiddle Down Suspension Spring
fit
ZC33S

42,900 JPY

purchase
