RRP 4 Pod Caliper Full Kit for ZC33S
|
4-pod caliper kit to cover the only weak point of ZC33S Swift Sport's brakes! ZC33S Swift Sport can be greatly increased in power with simple tuning, but if it is used for sports driving, the stock brake calipers will lose power, and there are cases where the capacity is insufficient due to power-down through overheating. Therefore, we developed a 4-pod caliper installation kit. Considering absolute safety while keeping costs low, the caliper uses Toyota's genuine 4-piston caliper. Rotors are 300Φ 3D slits. Newly designed machined chromoly bracket. With greatly increased brake capacity, it supports the driving of ZC33S Swift Sport. |
 |

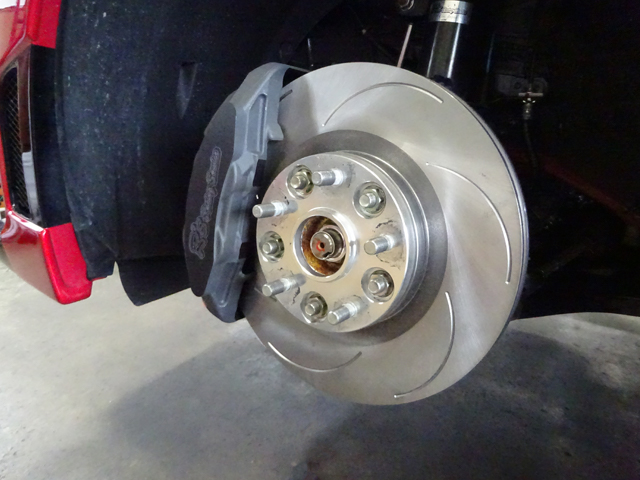

4 Pod Caliper Full Kit
|
Toyota 4-piston caliper Large slit rotor 3D shape is adopted Fully machined chromoly caliper bracket Low cost kit for installation |

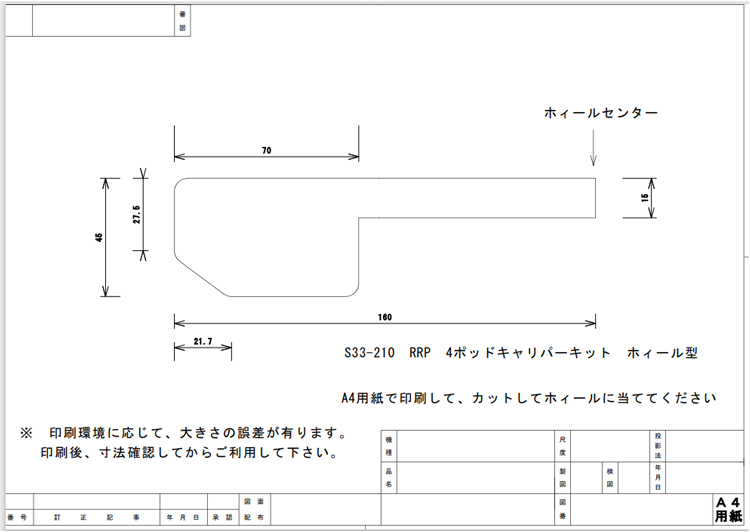

Caliper pattern paper
Please download the PDF file from below and print it out for your use.  Wheel type for ZC33S Racing Caliper
 How to use pattern paper |

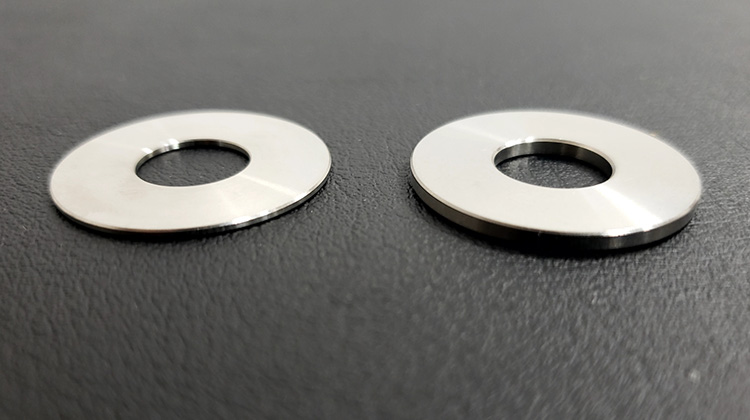

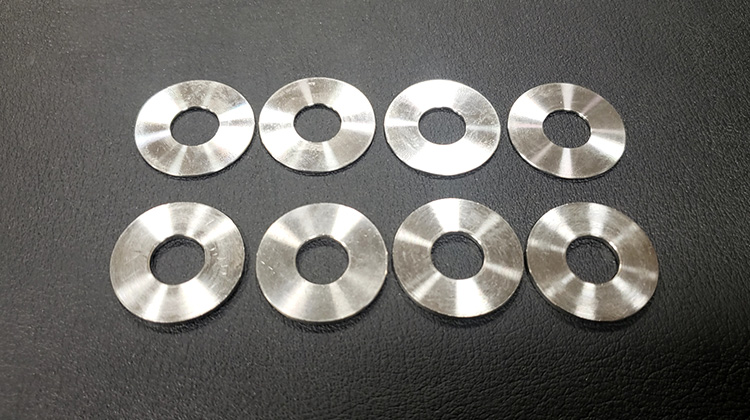

For 4 pod caliper kit offset shim
Shim that corrects pad and rotor outer diameter errors.
 |
 |
-
-
- SS33-211F:
- RRP 4 Pod Caliper Full Kit for ZC33S
(Sold to overseas customers only)

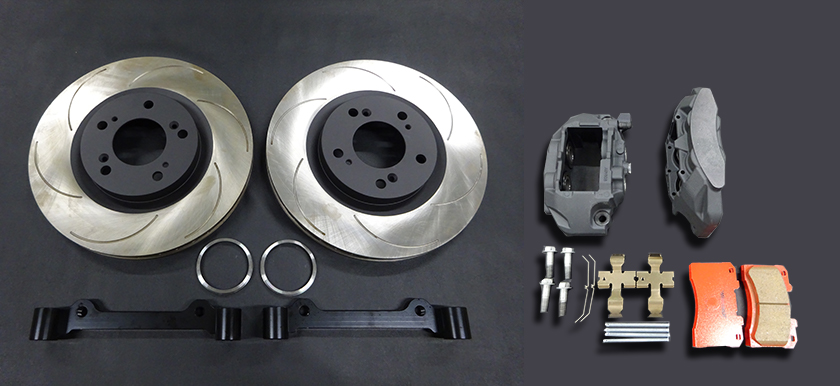

Kit Details : Calipers (2pcs), PAD Street F (1 set), PAD hardware (1 set)
Z Bracket (2pcs), Rotor (2pcs), Hub Ring (2pcs), Gasket (4pcs)
198,000 JPY
- S33-212:
- Stainless Steel Mesh Brake Hose Front Only
18,700 JPY
- S33-213:
- Stainless Steel Mesh Brake Hose Rear Only
19,800 JPY
- S33-214:
- 4 Pod Caliper Kit Repair Rotor Repair Rotors with slit
53,900 JPY
- S33-214A:
- 4 Pod Caliper Kit Repair Rotor Repair Rotors without slit
*The bell housing color is silver.
44,000JPY
- S33-215:
- 4 Pod Caliper Kit Street Brake Pad
24,200 JPY
- S33-216:
- For 4 pod caliper kit offset shim
24,200 JPY
Notes
- 1 We do not sell any parts in pieces. In the event of damage due to an accident, etc., the damaged parts will always be traded in.
- 2 Due to the nature of the product, the brake touch may feel a little deep.
- 3 Please check the wheel compatibility before purchasing calipers.
- Please download the pattern and check it.
- Even after confirmation, there are cases where fine adjustment may be required by installing wheel spacers, etc.
- Since there are many factors that affect the installation conditions, we may not be able to give you a full answer regarding the clearance between the caliper and the wheel.
-
3-1 For reference, R's demo car is equipped with RRP coilovers and camber (-3.5 degrees)
- Wheel spacers +15MM
- ENKEI PF-09 7.5J-17 INSET 45
- Tires BS 71RS 215/45R17
- 4 Rotor back plate and other simple (cutting or bending) modifications are required.
- 5 Rotor paint may peel or discolor due to heat or aging.
- 6 Please ask a professional mechanic to replace the brake oil and be sure to bleed the air out of the brake oil.
- 7 Due to the characteristics of the caliper shape, a screeching sound may be heard when the brake is backed up and the brake is depressed.
