Engine Parts SWIFT ORIGINAL PARTS

RRP High Performance Catalytic Manifold

RRP campaign
All products are made in Japan!

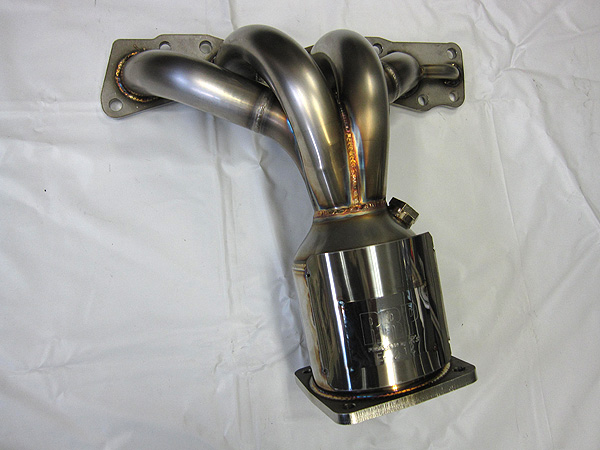

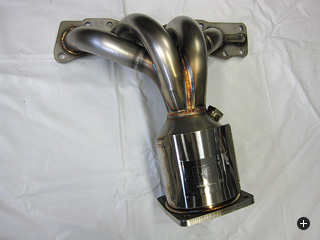

RRP High Performance Catalytic Manifold for ZC31

RRP High Performance Catalytic ManifoldRRP High Performance Catalytic ManifoldRRP High Performance Catalytic Manifold
RRP R's Racing Parts

We have designed and developed the catalytic manifold to improve the best exhaust efficient for Swift car with 42mm diameter 4-1 system in all stainless steel. The Catalysis is of course made in Japan which is manufactured in high density type so 7 to 9 hp will be gained for the performance from low rpm to high rpm. Also an efficiency of purification is higher than a stock catalysis so that RRP High Performance Catalytic Manifold is gent to the environment too.

  • Material : SUS 304 Stainless
  • Layout : 42mm diameter,  4-1 system, made in Japan sport catalysis

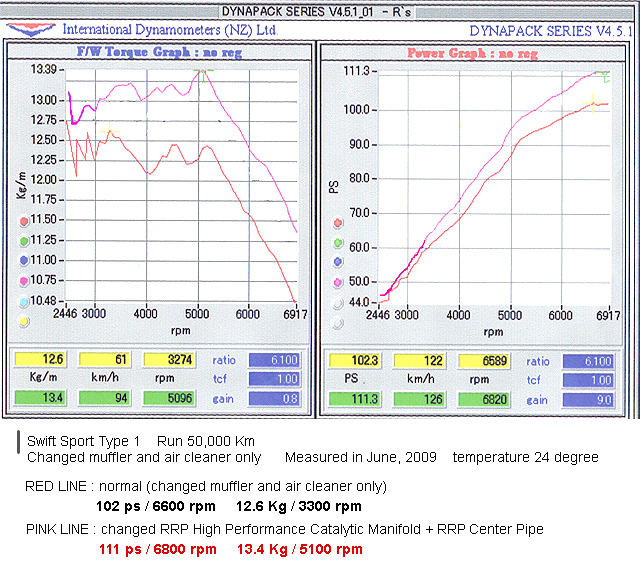

Dynopack Testing Result :

Red line : Swift Sport Stock condition + Muffler change + RRP Sport Cleaner
Pink line : RRP High Performance Catalytic Manifold + Center pine changed
Power gain : 9hp   Torque 0.8Kg
Testing Date : 12th June, 2009  Temperature 23 degree centigrade, Cloudy

The stock catalysis of Swift Sport consists 1 for an exhaust manifold and 1 for a center pipe but RRP High Performance Catalytic Manifold has passed the strict exhaust emission examination with 1 for an exhaust manifold. In option, we have RRP Front pipe (first part) and RRP Second pipe (second part).

E-214 : RRP High Performance Catalytic Manifold

129,150 JPY

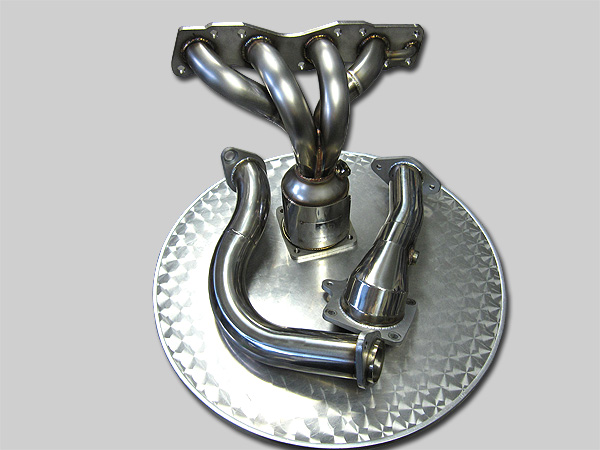

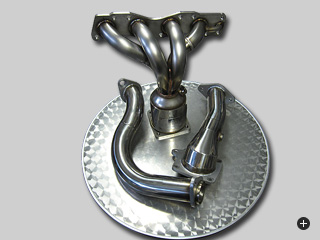

E-215 : RRP High Performance Catalytic Manifold Plus
(with RRP Front Pipe Kit)

149,100 JPY

Fit : ZC11, ZC21 and ZC31



RRP High Performance Catalytic Manifold for ZC11

We have been studied about an exhaust efficiency of ZC11 engine and developed the manifold with 38mm in 4-1 shape for ZC11 engine. The catalyst is designed with high density type which is Made in Japan as same as for ZC31 catalyst. Not only having the purity for emission exhaust gas but also the power and torque band are improved in full range from low rpm to high rpm. By solving the power less feeling in low rpm, every user will be able to enjoy the riding both of circuit race users and town riders.

[Note]
For ZC11 users, E-216 RRP Super Front Pipe Kit is required to fit RRP High Performance Catalytic Manifold for ZC11.


  • Material : SUS 304
  • Layout :
    38mm diameter, 4-1 type, Japanese made high density catalyst


Testing result of Dynopack

Red line : normal data

Green line : RRP High Performance Catalytic Manifold for ZC11
2nd August,2009   Fine temparature 28 degree

E-219 :

RRP High Performance Catalytic Manifold Plus
Set of catalytic manifold and front pipe 1st and 2nd parts



Attachments : Stay, O ring gasket, O2 sensor additional harness

153,300 JPY

E-220 :

RRP High Performance Catalytic Manifold
Front pipe first part, Front pipe second part and gasket are not included.
Please prepare E-216 RRP Super Front Pipe Kit to be fitted.
Or please prepare the genuine Suzuki parts as follow.

Front pipe

first part

14190-57K00 x 1



first part

14220-63JC0 x 1

Gasket



14183-65D00 x 2

133,350 JPY

Fit : Swift ZC11
