Engine Parts SWIFT ORIGINAL PARTS

RRP Middle Temperature Thermostat

New swift Sport ZC32S parts released!!We have added the new parts for ZC32S Swift Sport.

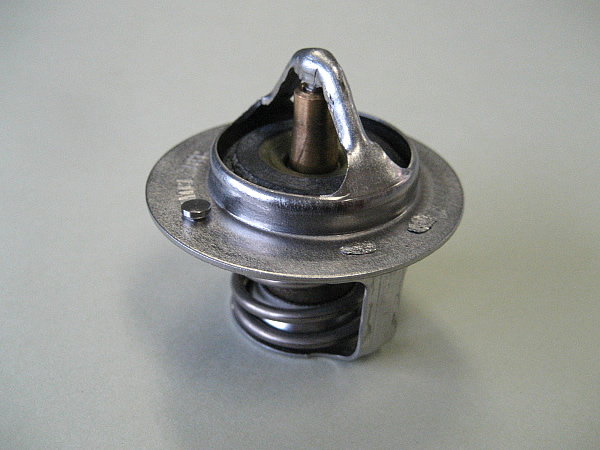

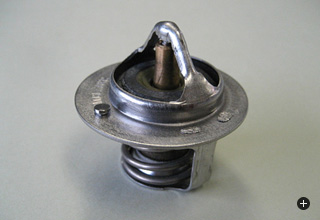

RRP Middle Temperature Thermostat

The water temperature control of Swift is very sensitive. R's Inc has started to sell RRP Middle Temperature Thermostat through a lots of tests result of supercharger, super ECU and etc. We found many cases that the performance of engine does not perform fully with a factory low temperature thermostat. ( starting to work around 65 degree ) With using original factory low temperature thermostat, a temperature of water is getting lower too much and causes power down and/or mileage worser, so a driver feels something power loosing and/or bad response of throttle work.

When the temperature goes down around 80 degrees, the computer misjudges that the engine is still not warm yet and send the direction to variable valve timing and/or electro throttle functions.
Then the performance of engine will be restricted in total by those effects.

But the temperature of water in engine should be controlled in proper in low to perform well so we have developed RRP Middle Temperature Thermostat for Swift. By using this thermostat, the temperature of water keeps 80 to 95 degrees and the performance of engine will be the best condition as well.

Specification


Opening Temperature

Full Opened Temperature

Full Opened Lift

Stock ZC31s

82 degrees

95 degrees

8mm

Stock ZC32s

88 degrees

100 degrees

8mm

RRP A type for ZC31S and ZC32S

75 degrees

88 degrees

9mm

RRP B type for ZC32S

78 degrees

92 degrees

9mm

Temporary low temperature

65 degrees

80 degrees

non

E32-300A : RRP Middle Temperature Thermostat A type (for circuit users)

3,780 JPY purchase

Fit : ZC32S

[Note]
The rubber packing is not included in this item so please use the stock rubber packing.

E32-300B : RRP Middle Temperature Thermostat B type (for street users)

3,780 JPY purchase

Fit : ZC32S

E-300 : RRP Middle Temperature Thermostat

3,780 JPY purchase

Fit : ZC11, ZC21, ZC31, HT81, SX4, and YA11S

[Note]
The rubber packing is not included in this item so please use the stock rubber packing.



New swift Sport ZC72S parts released!!We have added the new parts for ZC32S Swift Sport.

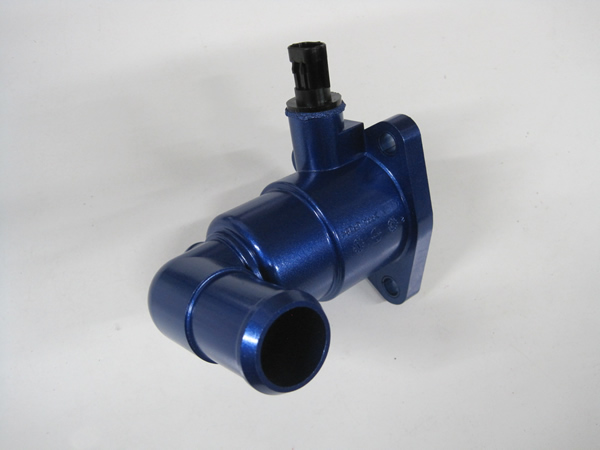

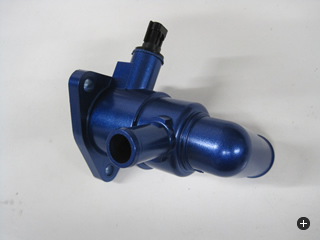

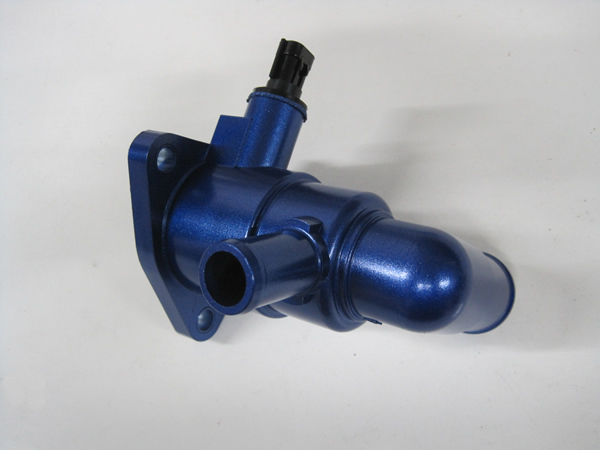

RRP Middle Temperature Thermostat for ZC72S
RRP Middle Temperature Thermostat for ZC72S
Specification


Opening Temperature

Full Opened Temperature

Full Opened Lift

Stock ZC72s

90 degrees

100 degrees

8mm

RRP ZC72S

80 degrees

85 degrees

9mm

E72-301 : RRP Middle Temperature Thermostat

7,560 JPY purchase

Fit : ZC72S KB12engine ,ZC72S Type1 and Type2

Note : This product cannot fit Type3 (The vehicle of chassis number ZC72S-3*****)
