Body Parts SWIFT ORIGINAL PARTS

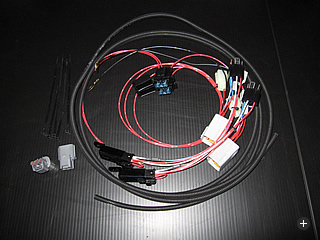

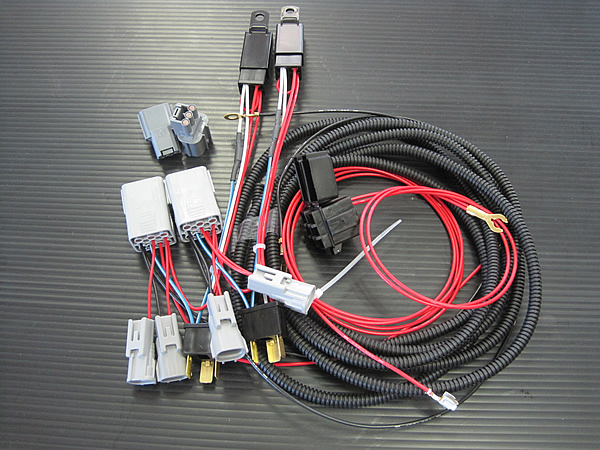

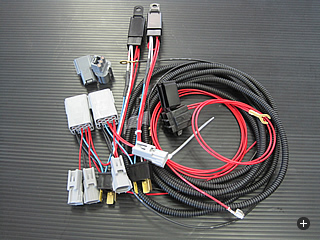

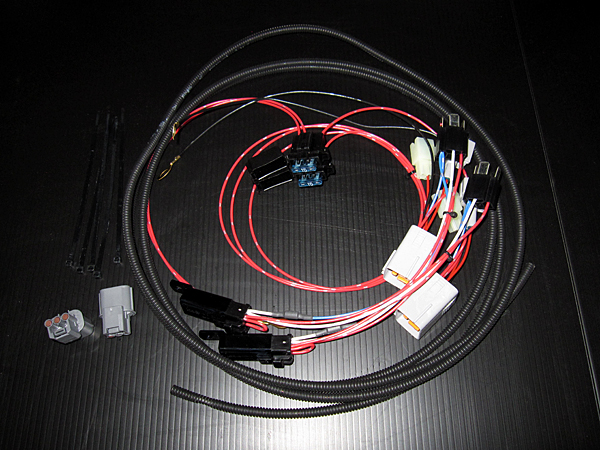

RRP One-touch HID Headlight Connector Kit

New swift Sport ZC32S parts released!!We have added the new parts for ZC32S Swift Sport.
RRP One-touch HID Headlight Connector Kit for ZC32S

for ZC32S

RRP R's Racing Parts

For halogen headlight of Swift and Swift Sport, RRP One-touch HID Headlight Connector Kit is the one-touch connector kit for the original Suzuki HID headlight without any wirings.
To fit HID headlight for Swift car, the difficult wiring process was required because the wiring of HID car and halogen car is completely different. By using this kit, you don’t need any troublesome wiring and can connect the wire simply.
The simple installation guide is included too, so you can change HID headlight easily.

Price

EP32-103 : RRP One-touch HID Headlight Connector Kit for ZC32S

24,200JPYpurchase

Fit : ZC32S, ZC72S with halogen headlight equipped car.


[Note]
This kit is the only wiring connector kit.
Please prepare a new or used HID headlight ASSY by yourself.

[Suzuki stock parts]

Product name Suzuki item number Quantity required
Headlight Right 35120-72L60 1pc
Headlight Left 35320-72L60 1pc
Ballast 35261-50MA0 2pcs
Bulb 12V 35W 09471-12208 2pcs
Gasket ballast 35625-73H20 6pcs
Cover back 35267-72L50 2pcs

[Note]
Above items for ZC32s are only for your reference. Please confirm by your nearest Suzuki dealer if the items can be fitted to your car before placing an order to us.



RRP One-touch HID Headlight Connector Kit

For halogen headlight of Swift and Swift Sport, RRP One-touch HID Headlight Connector Kit is the one-touch connector kit for the original Suzuki HID headlight without any wirings.
To fit HID headlight for Swift car, the difficult wiring process was required because the wiring of HID car and halogen car is completely different. By using this kit, you don’t need any troublesome wiring and can connect the wire simply.
The simple installation guide is included too, so you can change HID headlight easily.

Price

EP-106 : RRP One-touch HID Headlight Connector Kit

  End of Sale

Fit : ZC11S, ZC21S and ZC31S with halogen headlight equipped car.


[Note]
Some ZC11 and ZC21 car can’t fit this kit and this kit is the only wiring connector kit.
Please prepare HID headlight by yourself.


Suzuki Brand New HID headlight kit 200,000 JPY (as of April 2011)
[Set details]

Product name Item number Quantity
Headlight Right 35120-57K00 1pc
Headlight Left 35320-57k00 1pc
Bulb 12V 35W 09471-12208 2pcs
Igniter 35262-57k00 2pcs
Screw 35265-73H20 2pcs
Ballast 35261-57k00 2pcs
Gasket ballast 35263-57k00 2pcs
Screw ballast 35625-73h20 6pcs
Cover back 35267-57k00 2pcs

Above items are only for your reference. Please confirm by your nearest dealer of Suzuki Motor Corp if the items can be fitted to your car before placing an order to us.
